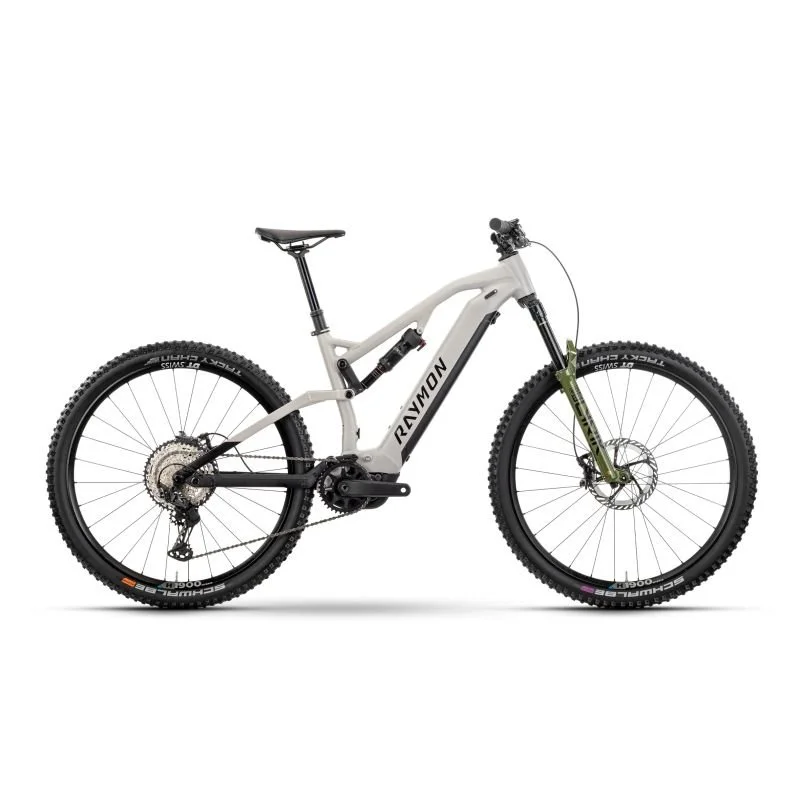

Raymon TrailRay 150 Ultra

ESPECIFICACIONES

MotorYamaha PW-XM, 250/600 W, 85 Nm

Batería800Wh, 36vControl UnitYamaha Interface X, ANT, Bluetooth

CargadorSmart Charger, 4A

Cuadro29", Aluminio 6061, Batería Extraible, Boost, 140mm

HorquillaRockShox Lyrik Ultimate, aire, 150 mm, tapered

AmortiguadorRockShox Deluxe Select+, aire, 230x57,5 mm

CambioShimano Deore XT, RD-M8100, Shadow Plus, 12v

Mando CambioShimano Deore XT, SL-M8100, Rapidfire Plus

BielasRaymon FC53 PRO, Aluminio forjado, ISISPlatoRaymon Ultra, Narrow Wide, 36T

CassetteShimano CS-M8100, 10-51T

CadenaShimano CN-M6100

Freno DelanteroShimano Deore XT, BR-M8120, 4 pistones, Disco Hidráulico

Disco DelanteroShimano RT-CL800, 203mm, Center Lock

Freno TraseroShimano Deore XT, BR-M8120, 4 pistones, Disco Hidráulico

Disco TraseroShimano RT-CL800, 203mm, Center Lock

RuedasDT Swiss H 1900 Spline, Tubeless ready, Center Lock, 15x110/12x148mm

Neumático DelanteroSchwalbe Tacky Chan Evolution, Super Trail, Addix Ultra Soft, 62-622, 29x2.4

Neumático TraseroSchwalbe Tacky Chan Evolution, Super Gravity, Addix Soft, 62-622, 29x2.4

PuñosRaymon MTB, lock on

ManillarRaymon Riser 35 mm, Sweep: 9 °, Rise: 20 mm

Ancho Manillar (mm)780

PotenciaRaymon 35, 0 °, AheadDirecciónFSA NO.69/62, Internal Cable RoutingTijaRaymon, 34,9 mm, Telescópica

Recorrido Tija (mm)170

Cierre Tija38,9, Tornillo Allen

SillínRaymon 143 VM Fit

CaballeteKSA40, compatible

Peso (Kg)24,5

Peso máx. admisible (kg)130
